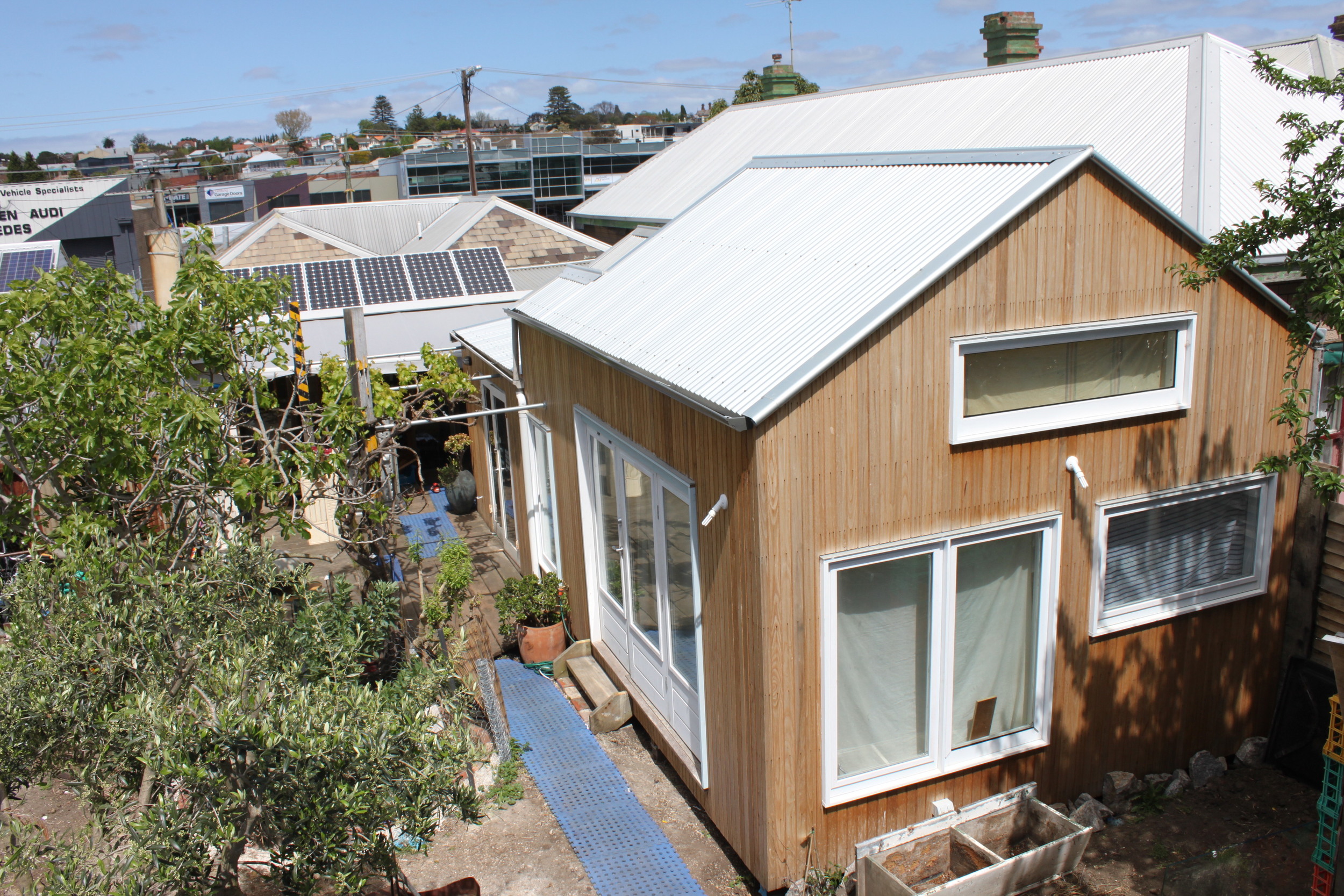

This project involved attaching a sensitively scaled addition to the rear of this heritage listed cottage in a tight inner city site.

A small detached building was also inserted in the established rear orchard to provide a multi function space for use as a "bodywork" studio and workspace, and to provide overflow accommodation for guests.

Hyperbolic parabaloid roof structure which accommodates loft storage above studio workplace.

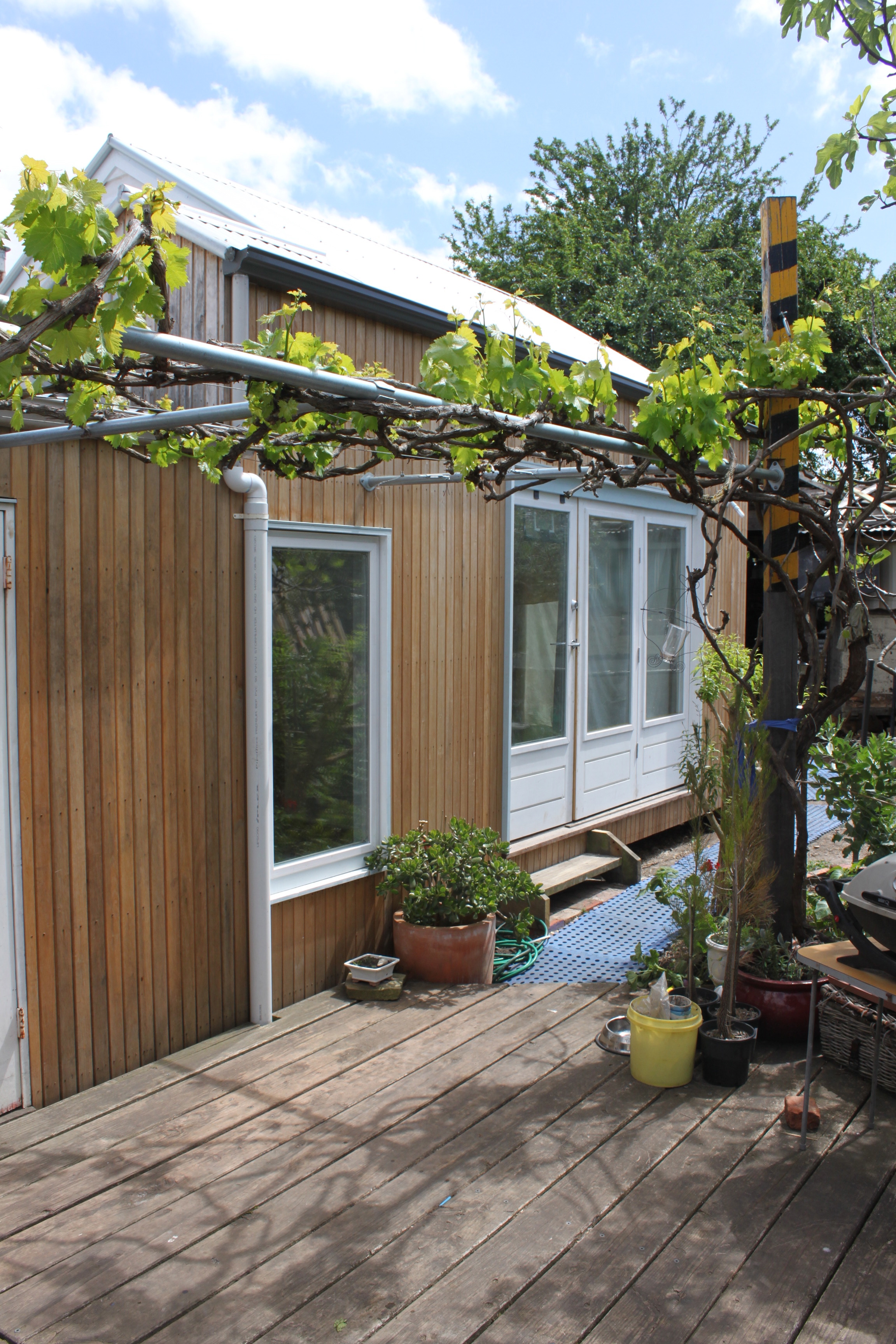

Living Room extension showing integration with existing galvanised iron pergola

Other project details :

Innovative insulated concrete screed slab thermal mass constructed on traditional elevated timber structure to Living room extension.

High performance Low E Argon Double glazing salvaged form East Brighton construction site "dump bin"

Triple glazing to bi fold doors salvaged from old supermarket freezer doors

FSC certified fingerjointed pine window and door frames

Low VOC internal finishes

Extensive use of recycled and radially sawn timber products :

Radially sawn shiplap silver top ash cladding

Recycled ironbark timber posts to studio salvaged from the "Hornibrook " bridge that previously connected Redcliffe with the South East Qld. mainland -

Salvaged concrete formwork Vic Ash timber lining to studio

Reclaimed tallowood flooring to studio
